4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

Name: 4 Channel 720P960P1080P CVIAHDTVI Fiber Optical to BNC Digital Video Converter
Brand: Ho-Link
Price: 1 USD

Quality 4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter wholesale

Brand Name : Ho-Link

Model Number : H-CVI-T/RF

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 15 Pairs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3,000Pairs per month

Delivery Time : 1-5 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Video Connector : BNC

Fiber Type : Multi-mode fiber or Single mode fiber

Fiber Connector : FC or ST or SC

Distance : 10km~80km (Optional)

Commodity Name : HDCVI Optical Converter

self-adaption cable equilibrium : 1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m

Input/Output Impedance : 75 Ω

Physical Interface : 1channels BNC connector

Contact Now

4ch video+1 return data Fiber Optical Video Converter/ Digital video fiber 16ch video+1 return data HDCVI over Fiber Transceiver HD-CVI video converter with 16 channel fiber optic

Product Description:

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

AHD Video Over Fiber Converter can simultaneously transmit 1~64 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Features:

Ø Non-compression coding technology
Ø Automatically identify formats of input videos
Ø Support transmission of 1~64 channels AHD signal and controlling data simultaneously though coaxial cable
Ø DC 5V power supply
Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
Ø Through LED indicators to inform its functional mode
Ø Industrial wide range of operational temperature
Ø Plug and play, simple installation

Specifications:

Feature	Description
Optical	Fiber Type	Multi-mode fiber or Single mode fiber
	Fiber Connector	FC or ST or SC
	Distance	0km~80km (Optional)
	Wavelength	Transmitter T1310nm, R1550nm. Receiver T1550nm,R1310nm.
HDCVI(Transmitting)	Input level	>500mVp-p
	self-adaption cable equilibrium	1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m
	Input/Output Impedance	75 Ω
	Physical Interface	16 channels BNC connector
HDCVI(Receiving)	Output level	1Vp-p
	Input/Output Impedance	75Ω
	Physical Interface	1~64 channels BNC connector
Data	Transmission Media	Coaxial cable
	Baud Rate	1200～9600bit/s
	Bit Error Rate	≦10
	Operation Mode	Half-Duplex
	Indicators	LOS,PWR,DATA,VIDEO
	Mean time between failures(MTBF)	＞100 000 hours
General	EPS	DC5V
	Power Consumption	≦5W
	Operation Temperature	—40℃～75℃
	Operation Humidity	10%～90%
	Atmospheric Pressure	86kpa~106kpa
	Mounting Method	Wall mounted

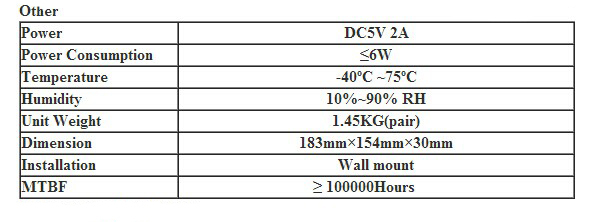

Specification:

Application Diagram:

4 Channel 720P/960P/1080P CVI/AHD/TVI Fiber Optical to BNC Digital Video Converter

Ø City traffic monitoring system
Ø Public security, safe city monitoring system
Ø Highway security protection, charging system
Ø Building, campus monitoring net
Ø Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
Ø Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
Ø electric power, oilfield, television program transmission system
Ø Gymnasium (live video, audio transmission)

Order Information:

Part No.	Description
H-TVI/CVI/AHD-1V-T/RF	1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF	1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF	2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF	2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF	4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF	4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF	8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF	8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF	16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF	16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF	32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF	32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data

We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
