Ho-Link 1 channel TVI/CVI/AHD 720P RS485 data fiber video converter

Name: HoLink 1 channel TVICVIAHD 720P RS485 data fiber video converter
Brand: Ho-link
Price: 1 USD

Quality Ho-Link 1 channel TVI/CVI/AHD 720P RS485 data fiber video converter wholesale

Brand Name : Ho-link

Model Number : HL-1V1D-T/RF-720

Certification : CE FCC ROHS

Place of Origin : China

MOQ : 15 pair

Supply Ability : 1000 pairs per month

Packaging Details : neutral packing

Wavelength : 1310/1550nm

Product name : HDCVI Video Converter

Connector : Simplex FC

Transmission distance : 20km

Warranty : 3 Years

Fiber type : Single mode single fiber

Input/output impedance : BNC 75Ω (unbalance)

Operating temperature : 0℃ to +70℃

Power : DC5V 2A

Color : Black

Contact Now

Product Description

Ho-Link TVI/CVI/AHD/CVBS 4 in 1 Video to Fiber Converter can simultaneously transmit 1 channel TVI/CVI/AHD/CVBS video over one single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Ho-link TVI/CVI/AHD/CVBS Video to fiber converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the composite signals to optical signals to achieve long distance for the HD CCTV installation.

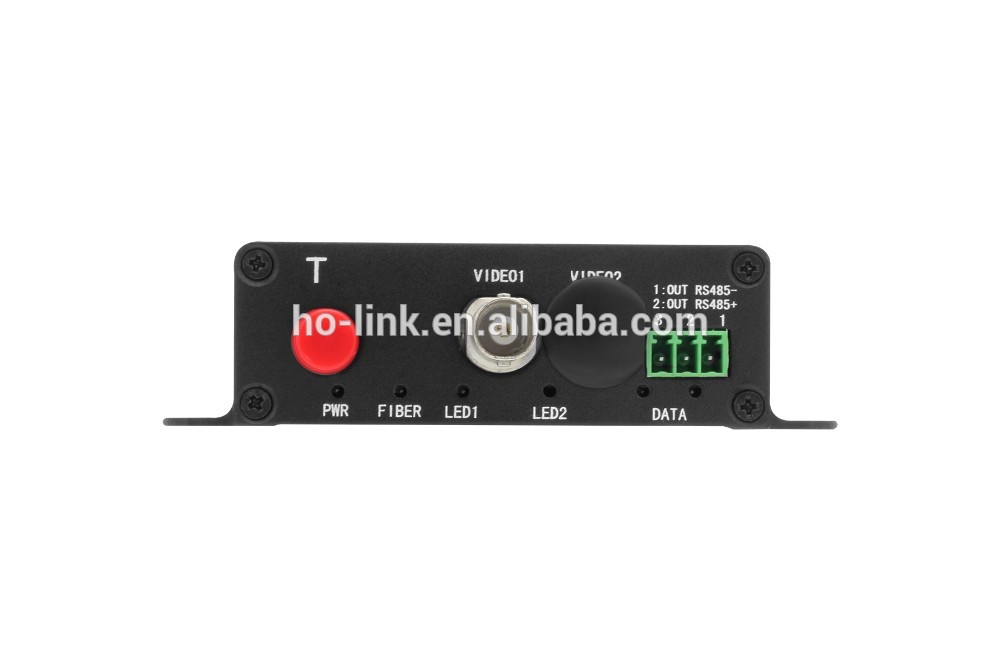

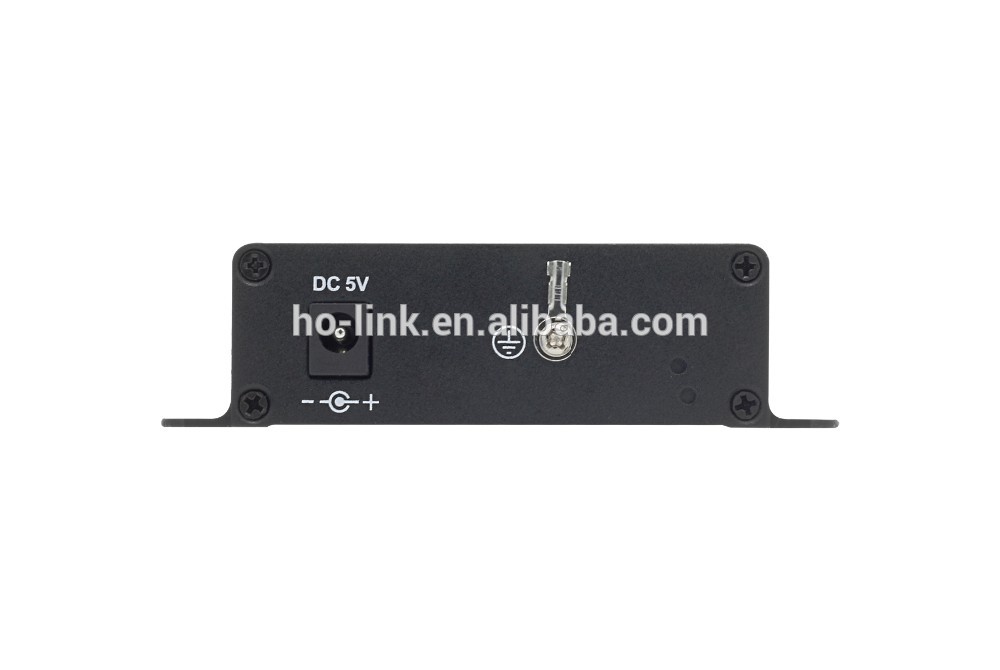

Detailed Images

Ho-Link 1 channel TVI/CVI/AHD 720P RS485 data fiber video converter

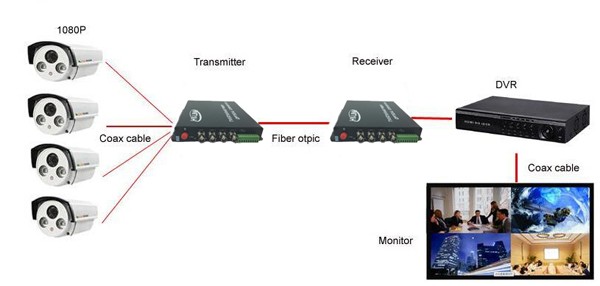

Diagram

Features&Application

Features:

1. Non-compression coding technology
2. Automatically identify formats of input videos
3. Support transmission of tvi/cvi/ahd/cvbs signal and controlling data simultaneously though fiber optic cable
4. DC 5V power supply
5. Support 720p/25,720p/30,720p/50,720p/60, videos etc
6. Through LED indicators to inform its functional mode
7. Industrial wide range of operational temperature
8. Plug and play, simple installation

Application:

1. City traffic monitoring system

2. Public security, safe city monitoring system
3. Highway security protection, charging system
4. Building, campus monitoring net
5. Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
6. Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
7. electric power, oilfield, television program transmission system
8. Gymnasium (live video, audio transmission)

Technical Parameters

SDI Video
Number of channels		1 channels
Input/out put Connector		BNC 75Ω
Input/output voltage		1.0 Volt p-p
Video Bits Rate		Max 3.2Gb/s
Video SDI Standards		1.485Gbps/M(HD-SDI)

Data
Data encode		RS485/RS422/RS232/Manchester
Physical interface		Industrial standard screw terminal
Frequency/Rate support		0~400K bps

Fiber Optic
Number of Optical port		1
Connector		FC as default, LC/SC.ST as request
Single-mode		20Km
Single-mode		1310/1550nm (Option)

Electrical & Mechanical
Power adaptor		AC 100-240V to DC 5V 2A
Power consumption		<6W

Environmental
Operating Temperature		- 20℃~+70℃
Storage Temperature		- 40℃~+85℃
Relative Humidity		0%~95% (non-condensing)
MTBF		>100,000 hours

Certifications

Packing

FAQ

Q1: How can I get your catalogue and price list?

A:Please let us know your email or contact us from website directly for our catalogue and price list.

Q2: Can I negotiate the prices?

A:Yes,we may consider discounts for multiple container load of mixed goods.

Q3: How much will the shipping charges be?

A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q4: Can I visit your factory?

A:Sure,our factory is in Shenzhen,China .I'm waiting for you here

Q5: What if there is quality problem when we get the goods?

A:If there any quality problem when you un-package the goods,you can take pictures for our reference,our QC department will check the problem and give best solutions to you.

Remark:

To meet the needs of our customers and help them to realize their projects, we also can manufacture the products according to customers requirements.

Any questions please feel free to contact us,we will provide quality services for you.
