VIDEO AUDIO OPTICAL MEDIA CONVERTER,1CH 2CH 4CH 8CH 16CH for option,with Alarm Data & Ethernet,FC SC ST fiber port,40KM,
Description

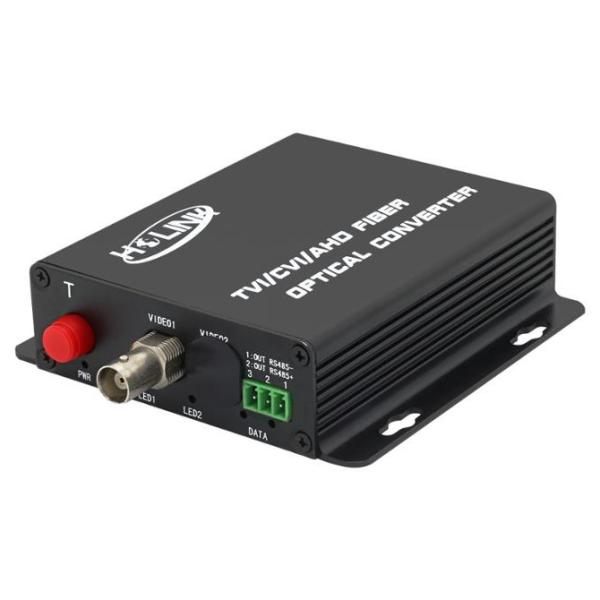

HD-CVI/AHD/TVI Fiber to Converter is designed for long-distance optical fiber transmission HD-CVI/AHD/TVI composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HD-CVI/AHD/TVI composite video.
Can effectively solve the long-distance optical fiber transmission Dahua HD-CVI , Hikvision HD-TVI and XM HD-AHD camera signals, including 1280H, 1920H of 1,000,000, 1,300,000, 2,000,000 HD-CVI/AHD /TVI signal can also be transmitted to other technical standards HD-CVI /AHD/TVI same camera signal.
Feature
- Non-compression coding technology
- though fiber optical cable
- DC 5V2Apower supply
- Support 720p/50, 720p/60, 1080p/25, 1080p/30 videos etc.
- Through LED indicators to inform its functional mode
- Industrial wide range of operational temperature
- Plug and play, simple installation.
- support OEM/ODM
- High quantification level of 8BIT and 10BIT
- Available in standalone, module, and rack
- CE,FCC and RoHs certificates.
- three year warranty
Ordering information
| Video channels | 1 channel |
| Video bandwidth | 8 MHz |
| Automatic compatible video system | PAL, NTSC, SECAM |
| Video input / output impedance | 75 Ω (unbalance) |
| Distance | 0-20KM |
| Power | <5W |
| Power supply | DV5V 2A |
| Video connector | BNC |
| Fiber-optic Specification | F/O connector: FC/ST/SC TX: Power: -5 ~ -0dBm Sensitivity: ≤-34dBm RX: Power:-5 ~ -0dBm Sensitivity: ≤-34dBm Transmission Distance: 60KM (single mode) Operating Wavelength: TX1310/RX1550nm (Transmitter) TX1550/RX1310nm (Receiver) |
| Specification of custom-made options |
| Data | Connector: Terminal Blocks Encoded type: RS485 / RS422 / RS232 / Manchester Data rate: 0 - 400Kbps BER: ≤10-9 |
| | |

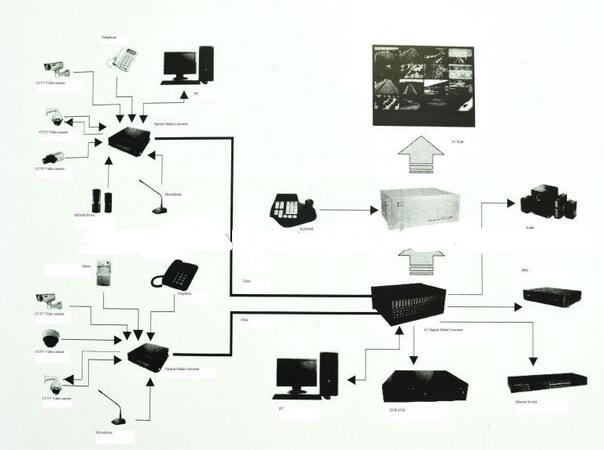

Applications
Shipping and packing:
* Process of replacement:
1. Show us the defective products via picture, video
2. Comfirm the quantity
3. We will verify it and find the root case to solve it out
4. New replacements will be offered together with your next order
