2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector

Brand Name : Ho-Link

Model Number : H-CVI-T/RF

Certification : CE RoHS FCC

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3,000pcs per month

Delivery Time : 1-3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Distance : 10km~80km (Optional)

Input level : >500mVp-p

self-adaption cable equilibrium : 1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m

Input/Output Impedance : 75 Ω

Physical Interface : BNC connector

Wavelength : Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm

Warranty : 3 years

Contact Now

2chs digital HD-CVI video Fiber Optical Converter

2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector

Descriptions:

CVI TO Fiber Converter can simultaneously transmit 1-8 channels CVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment.



Aplications:

  • Remote OB Van/Truck Video Feeds
  • Broadcast Studio Camera Feeds
  • Long-haul Signal Transport
  • TV station/video conference
  • Lecture Hall Projector Connectivity
  • Medical/Surgical Room Broadcast
  • Building to video conference calling
  • Small corporate campus video links



Technical Indexes:

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels 1~8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1/2ch:1.1kg,4ch:1.8KG,8ch:2.15KG(pair)
Dimension

1/2ch:108mm×106mm×27mm

4ch:173mm×173mm×30mm

8ch:173mm×167mm×45mm
Installation Wall mount
MTBF ≥ 100000Hours

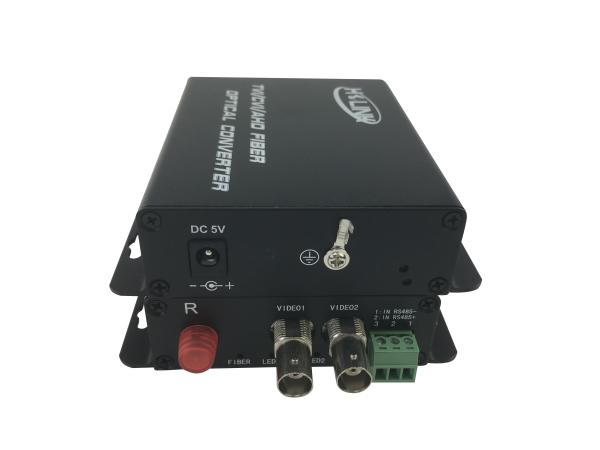

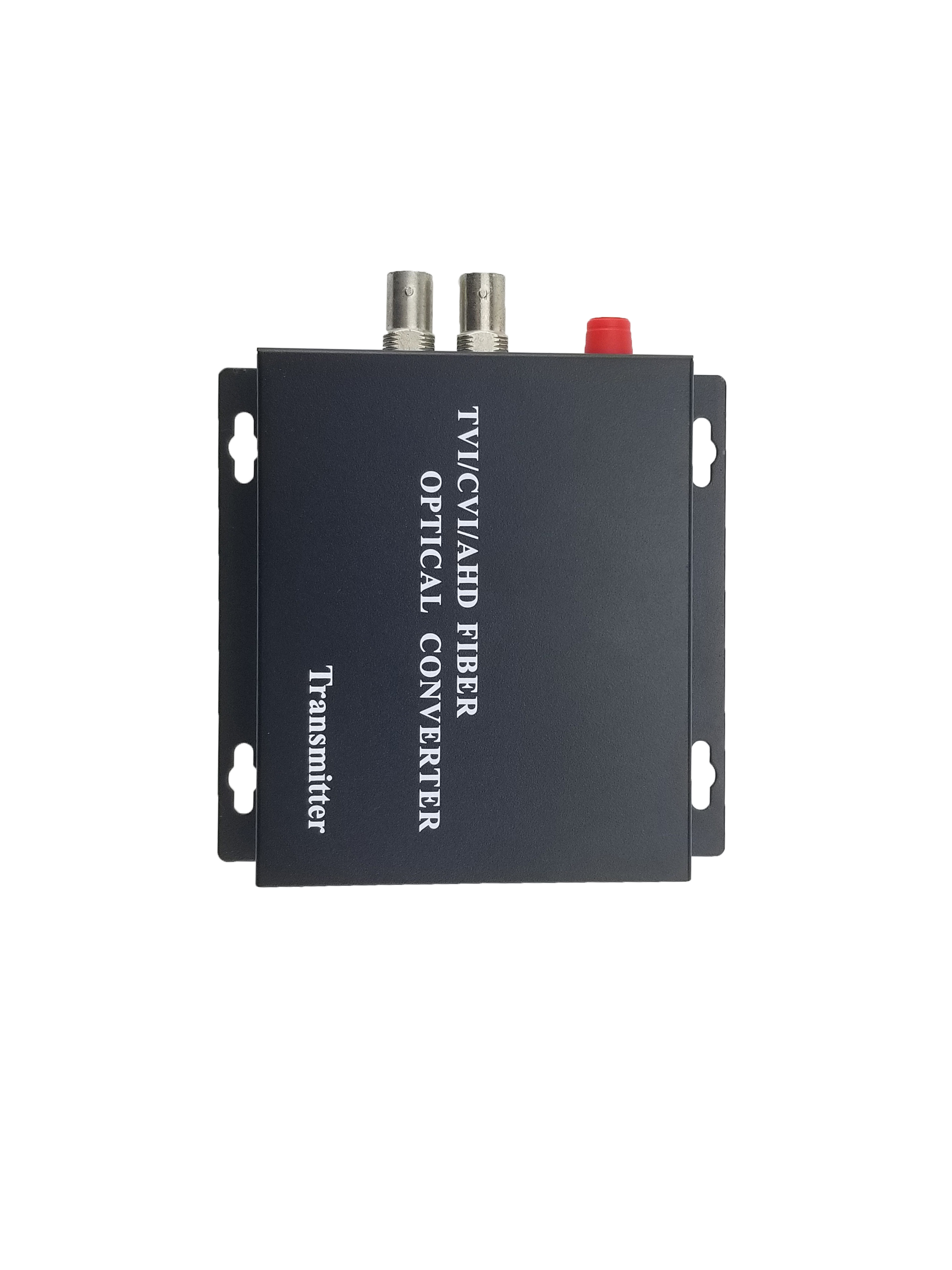

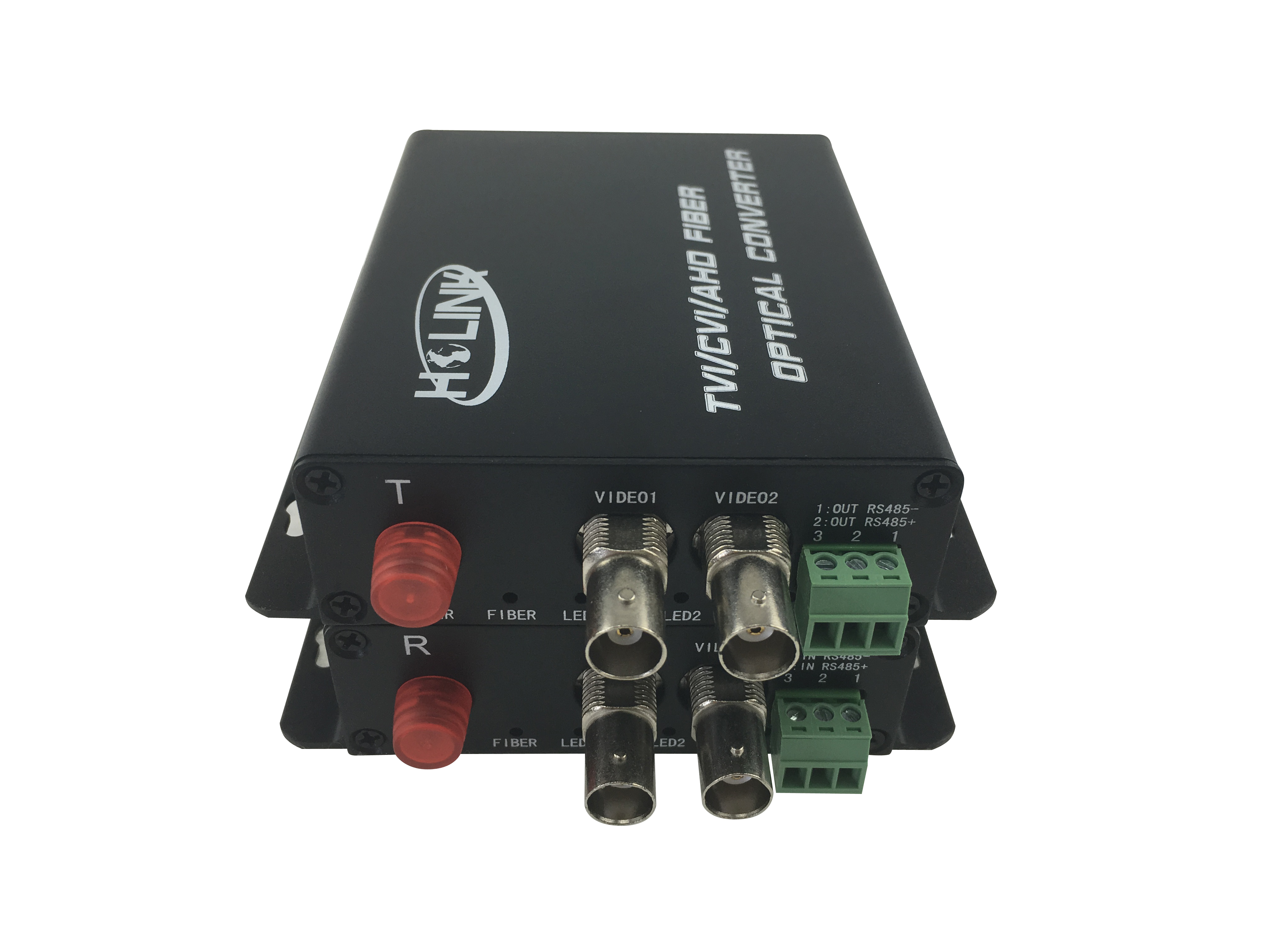

Product Display:


2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector
2chs digital CVI TVI AHD video Fiber Optical Converter BNC connector
