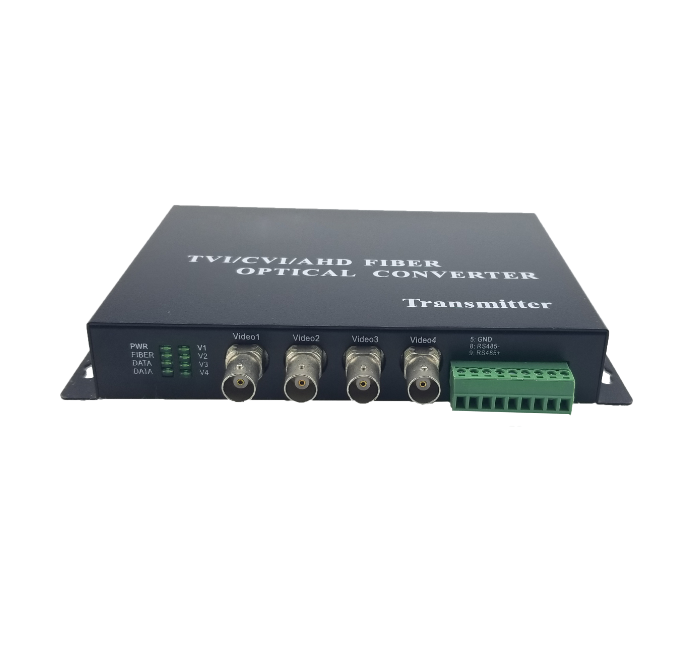

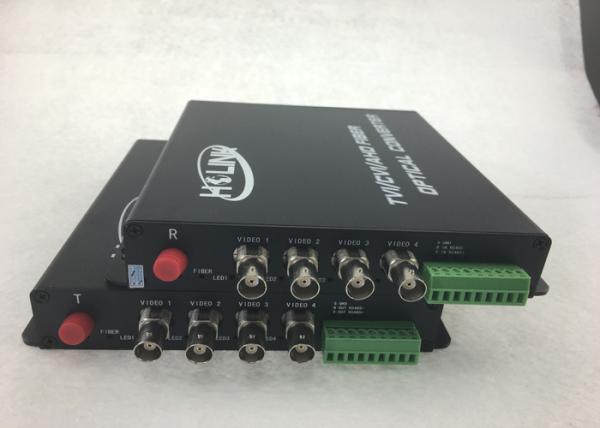

1080P/720P 4 Channels HDTVI Video Over Fiber Converter with 1Ch RS485
Introduction
HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.
It adopt the advanced uncompressed HD composite video and high velocity digital optical
transmission technologies which convert the high definition signals to optical signals.
HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.
Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.
The play-and-plug design makes the installation more convenient and easier for our customer.
Specifications:
| Feature | Description |
| Optical | Fiber Type | Single mode fiber |
| Fiber Connector | FC/SC/ST |
| Distance | 0km~80km |
| Wavelength | Transmitter |
| T1310nm, R1550nm. |
| Receiver |
| T1550nm,R1310nm. |
| HDTVI(Transmitting) | Input level | >500mVp-p |
| self-adaptionly cable equilibrium | 1080p:75-5 |
| coaxial cable,300m |
| 720p:75-5 coaxial cable,500m |
| Input/Output Impedance | 75 Ω |
| Physical Interface | BNC |
| HDTVI(Receiving) | Output level | 1Vp-p |
| Input/Output Impedance | 75Ω |
| Physical Interface | BNC |
| Data | Transmission Media | Coaxial cable |
| Baud Rate | 1200~9600bit/s |
| Bit Error Rate | ≤<10 -7 |
| Operation Mode | Half-Duplex;Full-Duplex;RS-232 |
| Indicators | LOS,PWR,VIDEO |
| Mean time between failures(MTBF) | >100 000 hours |
| General | EPS | DC5V |
| Power Consumption | ≤ 5W |
Description:
Ø Non-compression coding technology
Ø Automatically identify formats of input videos
Ø Support transmission of 4 channels TVI signal and controlling data simultaneously though coaxial cable
Ø DC 5V power supply
Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
Ø Through LED indicators to inform its functional mode
Ø Industrial wide range of operational temperature
Ø Plug and play, simple installation
Applications:
- City traffic monitoring system
- Public security, safe city monitoring system
- Highway security protection, charging system
- Building, campus monitoring net
- Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
- Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
- electric power, oilfield, television program transmission system
- Gymnasium (live video, audio transmission)
HDTVI TO Fiber Converter System connection diagram:
