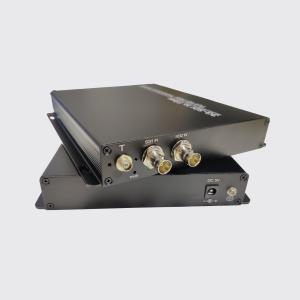

HDTV 3G SDI to Fiber Converter 2Ch 3G SDI video with1Ch Return RS485 Data,180mm x 123mm x 30mm
Product Description
System Design Fiber Optic Video Transmitter & Receiver
SDI series can transmission 1/2/4/8-Channels
SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.
Single-Mode or Multi-Mode
SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector
We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical
connector.
The Transmission distance Range according to the Optical Budget.
Manufacturer's default standard is single mode 20Km .
Features
•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber
• The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
•The SDI video format support:
625/25 PAL
525/29.97 NTSC
525/23.98 NTSC
720p50,720p59.94
1080P 23.98/24/30/50/60
1080i 23/24/30/50/59.94
Specification:
| Model/Name | HL-2V1D-20T/R/3D-SDI |
| Quantity/Type | Single Mode, Single Fiber |
| Video port | SD/HD-SDI |
| Transmission Distance | 0m-20Km/30km/40km/60KM optional |
| Fiber Connector | SC/FC |
| Wave Length | 1310nm/1550nm |
| Transmitted power | "-11dbm~-4dbm |
| MaximumReceiving Sensitivity | <-26dbm |
| Signal Type | SD-SDI(270Mbps)/HD-SDI(1.485Gbps) |
| Video Standard | SMPTE259M/292M/344M/ITU |
| DATA comm. method | RS232/422/ RS-485 |
| Digital Audio | 48KHz |
| Bandwidth | (-3db)20Hz-20khz |
| Power Supply | ac220v/50hz |
| Power Consumption | 3~5 Watts |
| Operating Temperature | Operating: -30℃ ~ +75℃ |
| Storage Temperature | Operating: -40℃ ~ +85℃ |
| Relative Humidity | 0~95% RH (Non-condensation) |
| Dimension | 210*140*25mm |
| Weight | 0.55kg |

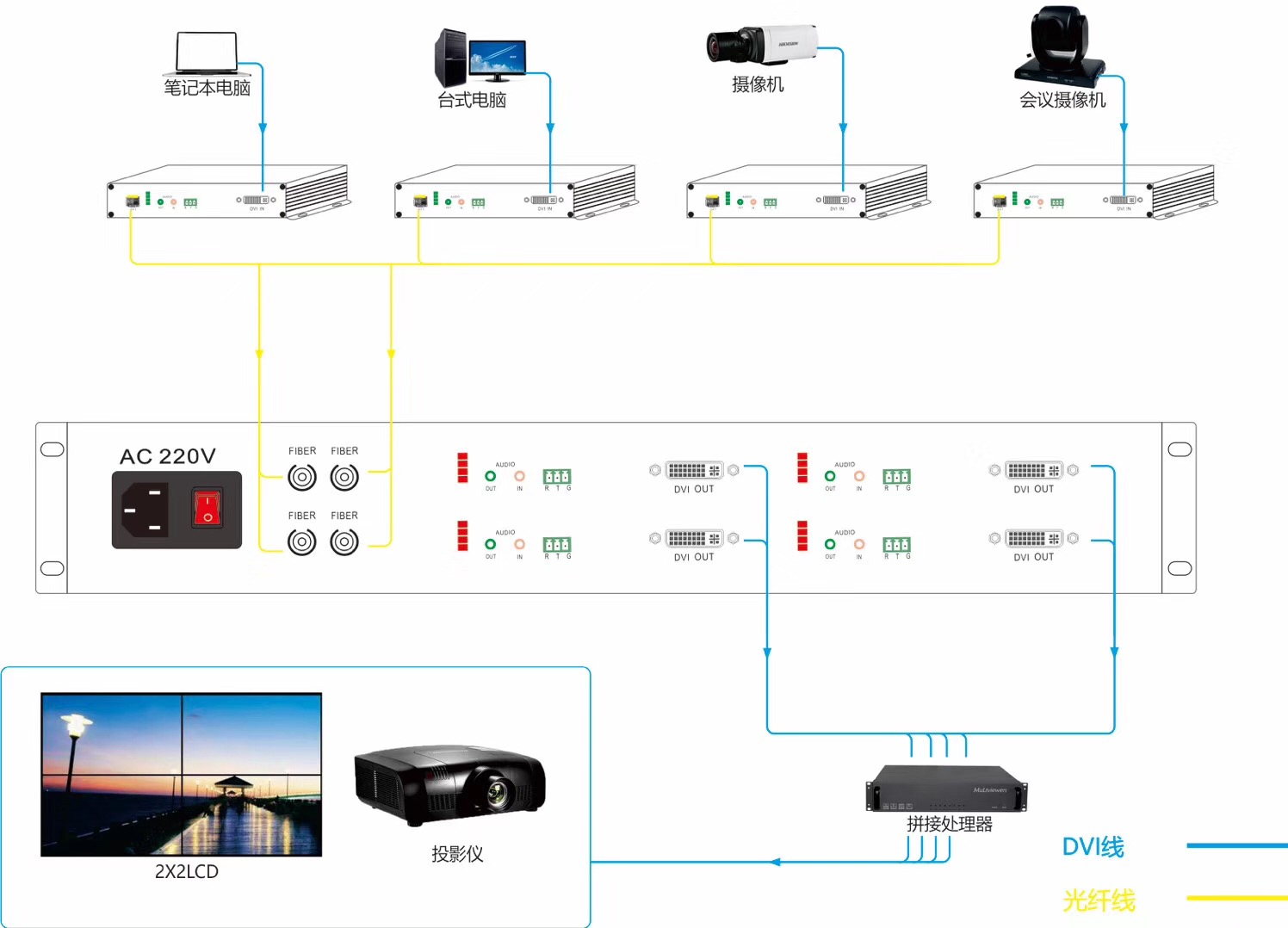

Application:
Typical application
Remark
•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).
•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
