It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m
Features
•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber
• The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
•The SDI video format support:
625/25 PAL
525/29.97 NTSC
525/23.98 NTSC
720p50,720p59.94
1080P 23.98/24/30/50/60
1080i 23/24/30/50/59.94

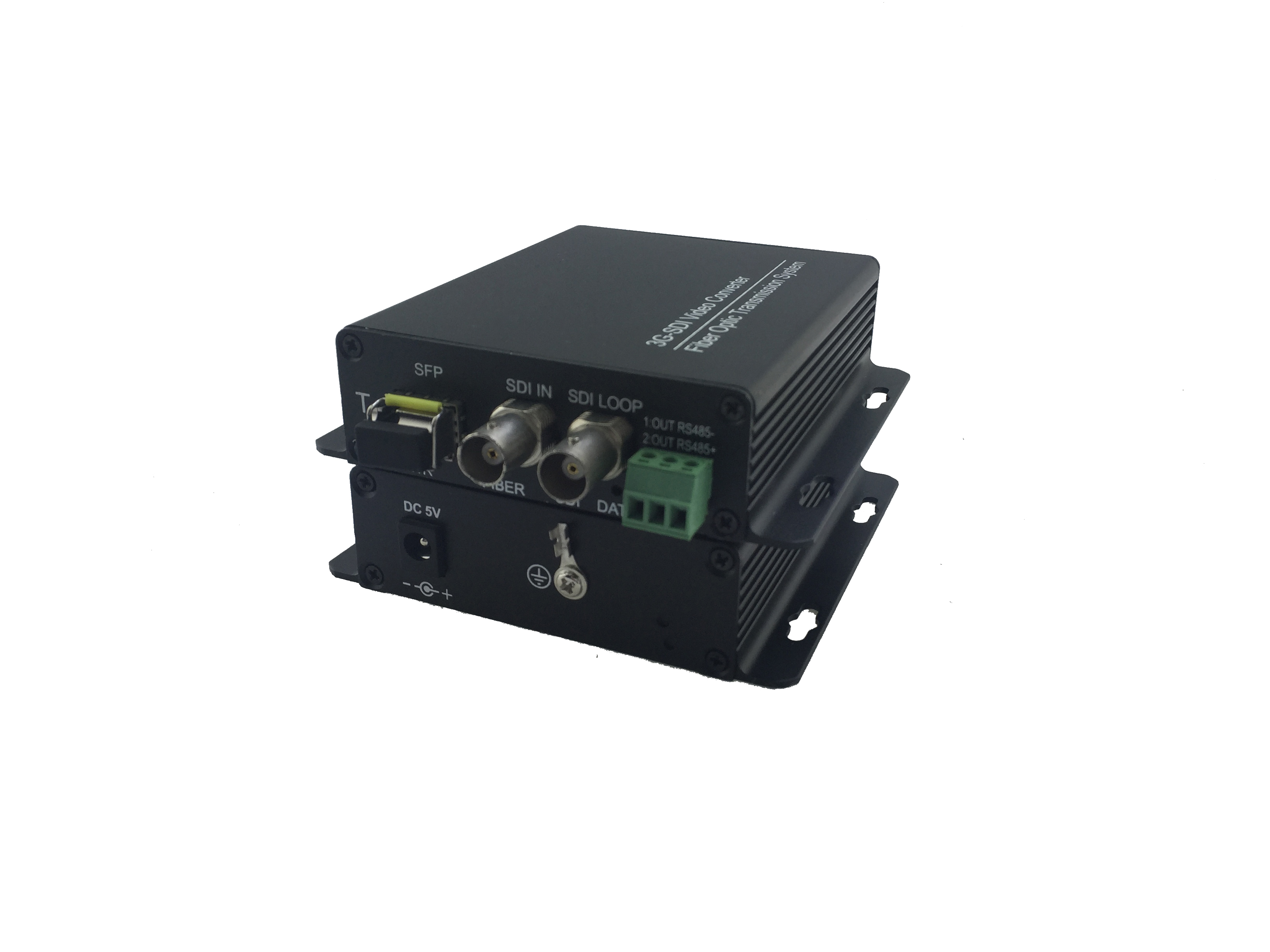

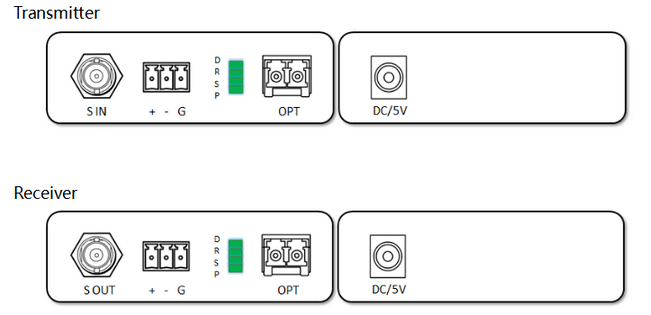

| Connect Name | Function |
| S IN/OUT | SDI signal input/output |
| + / - / G | 485 signal interface |
| OPT | Fiber Interface |
| DC/5V | The power adapter input |
| Light | Function |
| D | RS485 The communications light |
| R | system operating |
| S | Video signal lamp |
| P | The indicator system |
Remark
•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).
•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization

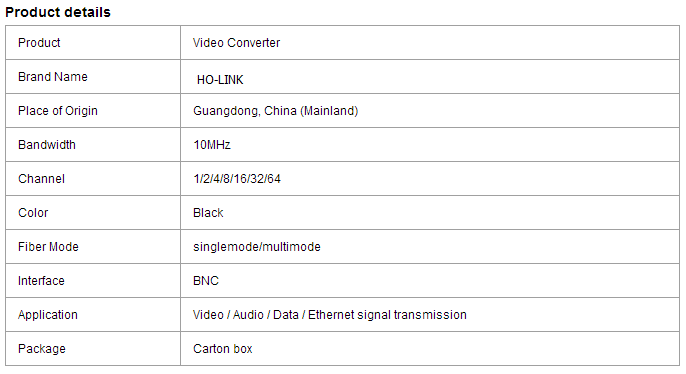

Opitcal:
| Wavelength | 1310nm&1470nm~1610nm |
| Output Power | -10~-3dBm / -3~+2dBm |
| Optic fiber | 50/125u multimode,62.5/125u multimode,9/125u single mode |
| Rx sensitivity | -21dBm |
| Optical connector | FC,ST,SC (optional) |
| Distance | 0~500M (MM) / 0~80KM (SM) |
Data:
| Data protocol | RS485 |
| Data rate | 0~200 Kbps |
| Error rate | < 10-9 |
| Connector | Standard terminal lead |
Video:
| SDI Input |
| Signal Type SDI | SMPTE 292M, SMPTE 259M |
| Data Rates | 270Mbit/s - 1.48Gbit/s |
| Cable Equalization | Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s |
| Connector | BNC 75 Ohm |
| General: |
| Input Power | 5 V DC or 12V DC |
| Power consumption (maximum) | Transmitter: 1.8W Receiver: 1.5W |
| Operating temperature | -10°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Operating humidity | 0 ~ 95% (non-condensing) |
| Net Weight | 750g per pair |
| Case material | Aluminum |
