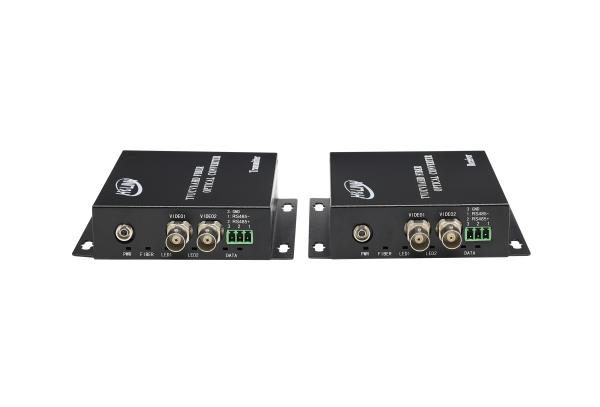

2Ch HD-CVI/AHD/TVI Video over Fiber Converter for 720P/1080p+RS485 data full HD

  • 1
  • 2

Brand Name : Ho-Link

Model Number : H-AHD-T/RF

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3,000pcs per month

Delivery Time : 1-3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Power : DC5V 2A

Wavelength : 1310nm&1550nm

Material : Aluminum Alloy

Transfer Distance : 20km

Rise and Fall time : <0.8ns

Application : CCTV/Protection/monitor ect

Fuction support : video,Audio,date,hd-sdi,AVI,AHD,HDMI

Warranty : 3 year

Fiber Power : -9~ -5dBm

Contact Now

2Ch AHD Video over Fiber Converter for 720P, 1080P/1Ch 720P/960P/1080P HD-CVI/AHD/TVI Converter

Introduction


Our CVI/TVI/AHD Video overFiber Converters can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.

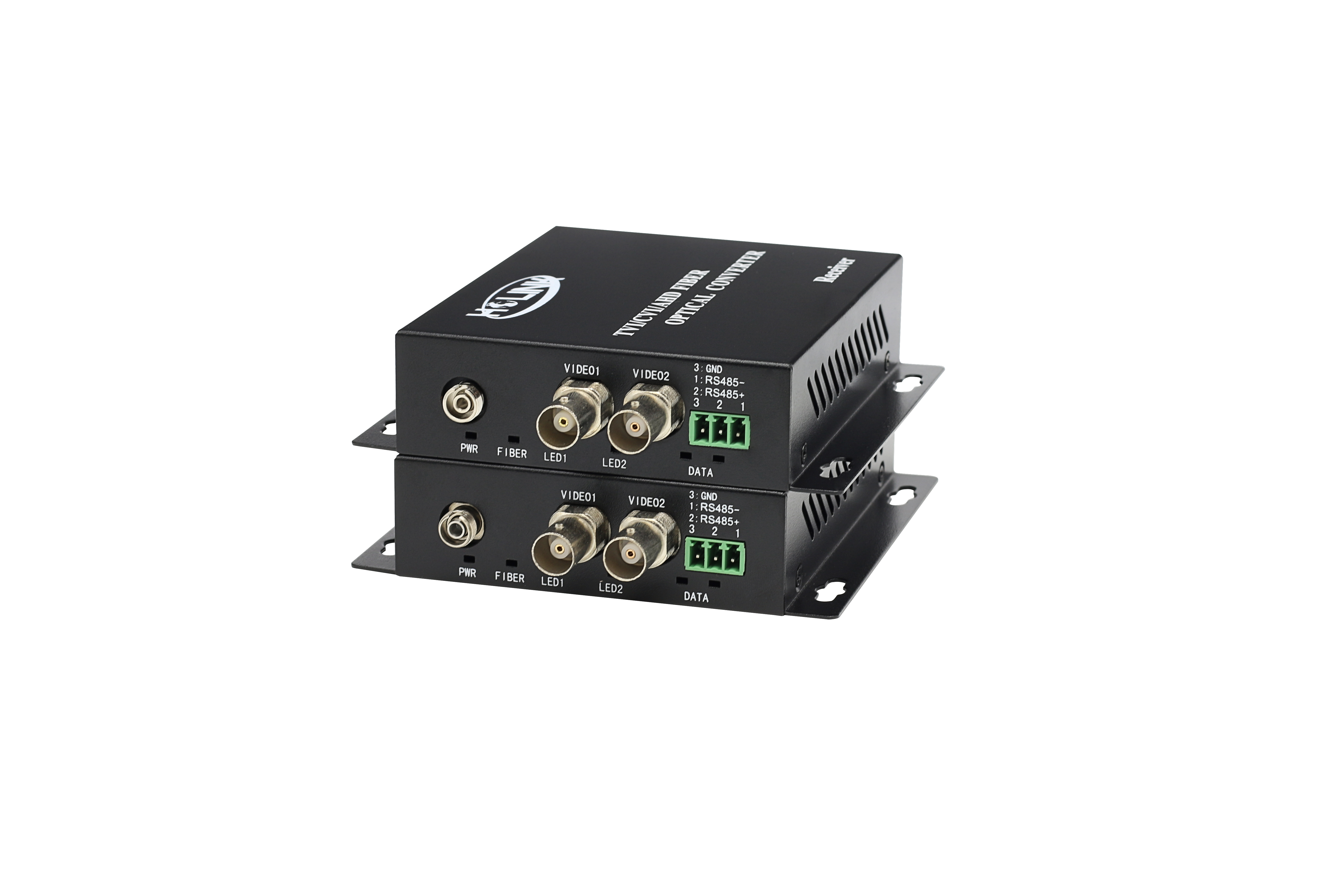

2Ch HD-CVI/AHD/TVI Video over Fiber Converter for 720P/1080p+RS485 data full HD

Specifications:

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~80KM (SM)

Video:

Number of Channels 1
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other:

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Installation Wall mount
MTBF ≥ 100000Hours

Description:

  1. Transmitter + Receiver
  2. Fiber Mode: Single-Mode
  3. Wavelengths: 1310nm/1550nm
  4. Optical Power Budget: 12dB
  5. Maximum Transmission Distance: 20km
  6. Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
  7. Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)
  8. Support Point-to-Point or Daisy-Chain connection
  9. Uncompressed Digital Composite Video over one fiber
  10. Compatible with all PAL, NTSC,SECAM Video Systems
  11. Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
  12. Single-Mode Fiber Support for Distances up to 100 km
  13. LED Status Provide Rapid Indication of Operating Parameters
  14. No EMI or RFI and no ground loops
  15. Support Coarse Wavelength Division Multiplexing (CWDM)
  16. Stand alone
  17. Produce according to customer's specifications,providing OEM

Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)

AHD TO Fiber Converter System connection diagram

2Ch HD-CVI/AHD/TVI Video over Fiber Converter for 720P/1080p+RS485 data full HD

Order Information:
Part No. Description
H-TVI/CVI/AHD-1V-T/RF 1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF 1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF 2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF 2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF 4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF 4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF 8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF 8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF 16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF 16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF 32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF 32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data

2Ch HD-CVI/AHD/TVI Video over Fiber Converter for 720P/1080p+RS485 data full HD

We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.

Company Information

Holink Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Every month,we can turn out 10,000 units of above products.Before production,our raw mattrials are checked again to make sure they are compliant with RoHS Directives.And all our output is CE and FCC-marked,our first class brand products have long enjoyed good reputation among United Kingdom,Spain,Italy,Poland,Turkey,The US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vienam and India.
