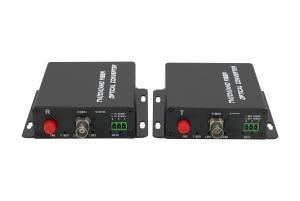

1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras

Brand Name : Ho-Link

Model Number : H-CVI-T/RF

Certification : CE/ROHS/FCC/SGS

Place of Origin : China

MOQ : 50pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3,000pcs per month

Delivery Time : 1-3 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Function : Video to Fiber Optical Modem

Optical connector : FC/SC/ST

Power : DC5V 2A

Operation Mode : Full duplex / half duplex

Color : Black

Warranty : 3 years

Storage humidity : 10%~90% RH

Video Connector : BNC

Case Material : Aluminum

Contact Now

1Ch CVI Digital Video to Fiber Optic Converter

Introduction:


This HDCVI TO Fiber video Converter can simultaneously transmit 8 channels HDCVI and 1CH reverse RS485 over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment . Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission.In addition,ethernet/telephone/audio/contact closure can be added when you need.It support Dahua and other brand CCTV CVI cameras.

Specifications:

Opitcal:

Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)

Video:

Number of Channels 4
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC

Other

Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1.5KG(pair)
Dimension 175mm×154mm×30mm
Installation Wall mount
MTBF ≥ 100000Hours


HDTVI TO Fiber Converter System connection diagram:

1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras
About US:

1ch Standalone HDCVI over fiber HD 1080p Video Converter support Dahua CCTV cameras

Holink Technology Co., LTD is an ISO 14000:2004 & ISO 9001:2008 certified manufacturer specialized in R&D, production, sales and services of Optical Transmission products. Relying on the rapid growth of Data Center and HPC, Holink has become a Top-100 maker and one of the earliest suppliers for optical products, including optical modules and HDMI/SDI video over fiber converter.
