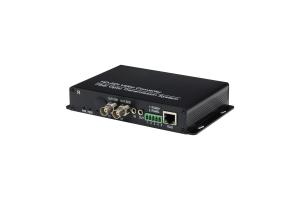

It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m
Features
•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber
• The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The fiber port Support SFP transceiver hot-plugged
•The SDI video format support:
625/25 PAL
525/29.97 NTSC
525/23.98 NTSC
720p50,720p59.94
1080P 23.98/24/30/50/60
1080i 23/24/30/50/59.94
Typical application
Remark
•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).
•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
4. Technical Specification
| Item | Typical value |
| HD-SDI Interface |
| Connector | BNC |
| Bit rate | 1.485Gb/s |
| Impedance | 75Ω |
| Return loss | >15dB |
| Output level | 800mVp-p±10% |
| Rise and fall time(HD-SDI) | ≤270ps |
| HD-SDI Alignment jitter (100KHz) | ≤0.2UI |
| HD-SDI Timing jitter (10Hz) | <1.0UI |
| Standard | Comply to SMPTE-292M HD-SDI standard |
| Audio Interface (Optional) |
| Connector | PHOENIX connector |
| Impedance | Input high-impedance, output 600Ω |
| Quantization grade | 24 bits |
| Sample frequency | 48KHz |
| Audio input/output voltage | 2VP-P |
| Bandwidth | 20Hz~20KHz |
| Total Harmonic Distortion | 0.1% |
| FE Interface |
| Connector | RJ45 |
| Frame length | From 64 bytes to 1552/1536 bytes |
| Working mode | Auto-negation by default |
| Bit rate | 10/100Mb/s |
| Duplex | Half/full duplex |
| Port VLAN | Default settings: closed. That is , all the port share the same LAN. |
| Flow Control | Default settings: open |
| Standard | IEEE802.3u 100Base-TX/ IEEE802.3 10Base-T |
| RS485 Interface |
| Connector | PHOENIX connector |
| Baud rate | 0~115.2Kb/s |
| Bit error ratio | <10-9 |
| Duplex | Half-duplex |
| CONSOLE Interface |
| Connector | RJ45 |
| Baud rate | 38400 |
| bits | 8 |
| Stop bit | 1 |
| parity check | None |
| EMU/EMU-EX Interface |
| Connector | RJ45 |
| Bit rate | 10Mb/s or 100Mb/s auto adaptive |
| Power and Consumption for desktop equipment |
| Power supply | DC 12V |
| DC input voltage range | 8V~14V |
| Power consumption | 3W±10% |
| Power and Consumption for rack mounting chassis |
| Power supply | AC 220V /DC-48V |
| DC input voltage range | -36~-72V DC |
| AC input voltage range | 176~264V |
| Power consumption for each card | 3W±10% |
| Environment Requirements |
| Working temperature | -30~60℃ |
| Relative Humidity | ≤95%, no condensation |
| Storage temperature | -40~85℃ |
| Equipment dimension |
| Dimension of Rack mounting chassis (with rack ear) | 330mm x 178mm x 482mm |
| Desktop equipment dimension | 180mm x 123mm x 30mm |
