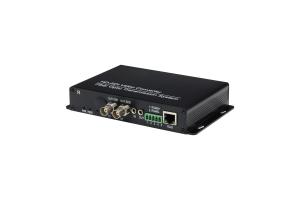

AC Input Coupling 2channel HD SDI To Fiber Converter Transmission Distance 20 / 40 / 80 km

Product Categories
Ho-link Technology Co., Limited
Contact Now

AC Input Coupling 2channel HD SDI To Fiber Converter Transmission Distance 20 / 40 / 80 km

Brand Name : Ho-link/OEM

Model Number : HL-1V-20T/R/HD-SDI

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1 Pair

Price : Negotiable

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000pairs/month

Delivery Time : 3 working days after received your payment

Packaging Details : Neutral /Standard/Customized packing

Input channel : 16

Signal Type : HD-SDI video converter

Data format : RS-232/422/485

DC offset : 5V

Transmission distance : 20/40/80km

Input coupling : AC

Contact Now

HD-SDI over fiber video converter,2-Ch HD-SDI video embeded with audio+1Ch Return 485/232/422,data,1.25G



Overview:

This SDI to Fiber extension set includes an SDI to Fiber Transmitter and Receiver for transmitting multi-rate SDI up to 18 miles (30 Km) over fiber using a single-mode or multi-mode fiber optic cable with ST connectors.
It is a miniature-style extension solution that supports all SDI formats up to 3G including; SMPTE-424M (3G-SDI), SMPTE-292M (HD-SDI), and SMPTE-259M (SD-SDI) protocols.
To prevent signal loss, input signals are equalized and ouputs reclocked to 120 meters for 3G-SDI and 140 meters for HD-SDI.


Features:

« 4-ch HDSDI
« Range from 19.4Mb/s to 1.485Gb/s
« SMPTE 292M (1.485Gb/s) clock recovery
« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
« 150m automatic cable equalization, all the 1.485 Gb / s rate below(Belden 1694A)
« Optional network management system
« LED status indicators monitor the critical parameters
« Optional network system
« Support hot swap
« Stand-alone, 1U rack mount and 4U rack mount


Parameter of sdi fiber optic transceiver

SDI Video Interface 1 Channel HD-SDI Video Input
Connector 1 BNC Connector
Signal Type HD-SDI,SDI Digital Video Signal
Support Agreement SMPTE259-M-C, SMPTE 292M, SMPTE424M,
ITU-R BT. 601, ITU-R BT.1120
Gain Entity
Resolution 8 or 10bits, Automatic
Rate 270Mbps, 1.485Gbps, 2.970Gbps
Automatic Data Rate Lock Yes
The nominal level 0.8Vp-p
Minimum / maximum level 0.5V-1Vp-p No offset
Resistance 75ohms
Return Loss ≥15Db 5MHz-1.5GHz
≥10dB 1.5GHz-3GHz
DC offset (maximum allowable) 5V
Input coupling AC
Input cable equalization Automatic reach of fiber loss -30dB






networking application
AC Input Coupling 2channel HD SDI To Fiber Converter Transmission Distance 20 / 40 / 80 km






Company Information:

Company Profile

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
Welcome to source high quality products at competitive prices from us.
